| Place of Origin: | China |
|---|---|
| Brand Name: | JQHV or OEM |
| Certification: | QC |
| Model Number: | JA626AB AF1934M AF1935M 600-181-8230 600-181-8270 P181070 P124046 |
| Minimum Order Quantity: | 4 sets |
| Price: | USD10.00 - 15.00 /PC |
| Packaging Details: | Plastic bag + inner box with sticker +outer carton |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 1500 pcs per month |
| Prodcut Name: | Excavator Air Filter | OEM No.: | AF1934M AF1935M 600-181-8230 600-181-8270 P181070 P124046 |
|---|---|---|---|
| Model: | PC300-5/6 PC350-5/6 EX300-1 HD1430-3 SK230/300/330/350-6E | Application: | Excavator, Engineering Machine |
| Size: | Outer H456×232×146/22mm, Inner H430×143×116/18mm | Material: | HV Filter Paper |
| Color: | Picture Color | Efficiency: | 99% |
| Packing: | JQHV Packing Or Neutral Packing | ||
| Highlight: | AF1935M Air Filter,600-181-8230 Air Filter |
||

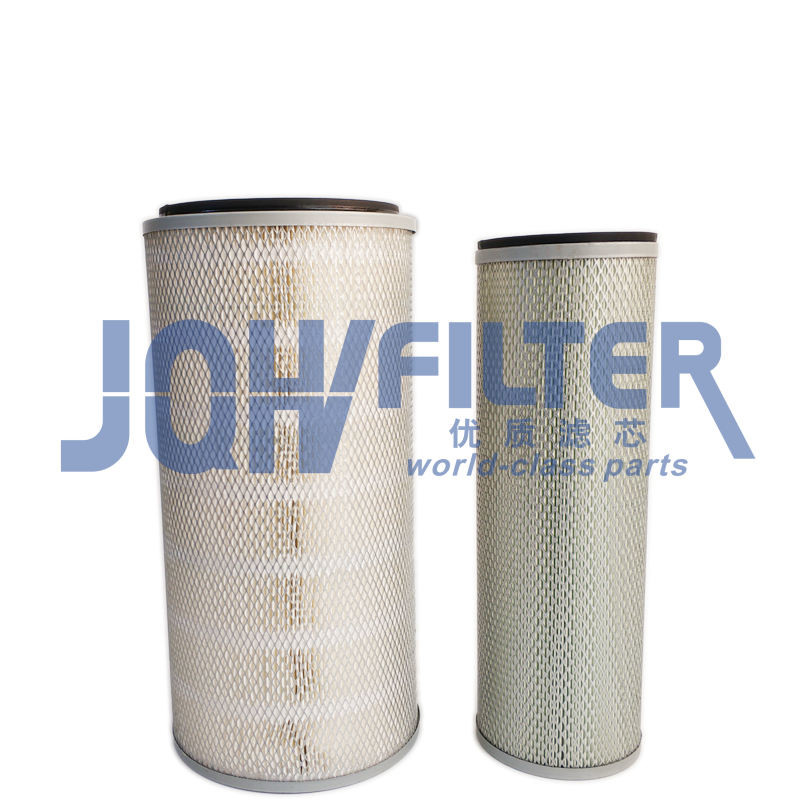

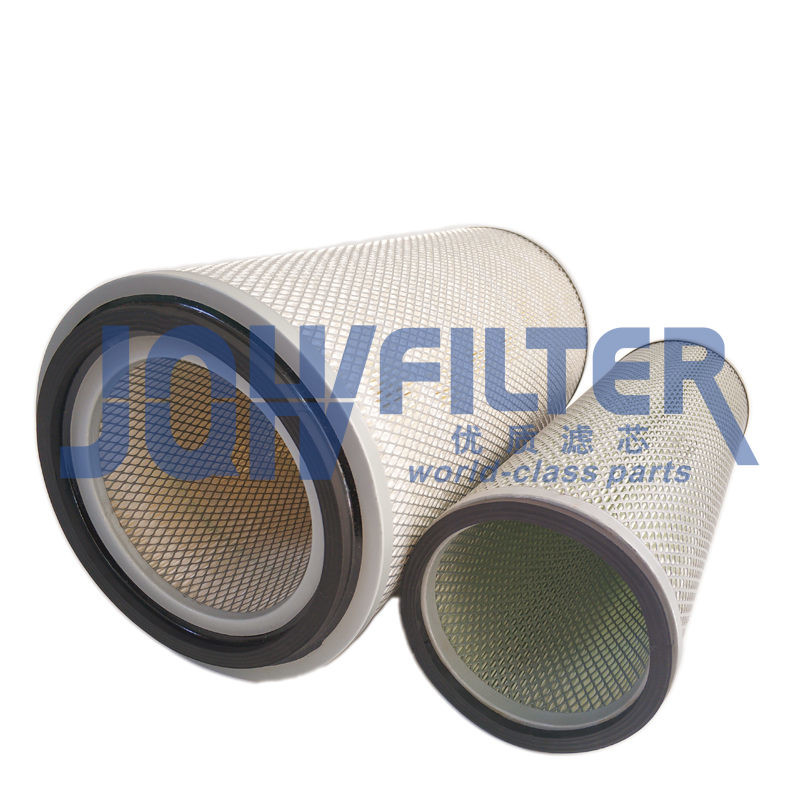

Air Filter 600-181-8230 AF1934M AF1935M For PC300-5/6 PC350-5/6 EX300-1 HD1430-3 SK230/300/330/350-6E
Product Specifiions
| Brand name | JQHV FILTER |
| Part name | Air filter element |
| Model | PC300-5/6 PC350-5/6 EX300-1 HD1430-3 SK230/300/330/350-6E |
| Application | Excavator, loader, dozer, grader |
| Out diameter(OD) | 232.2 mm (9.14 英寸) |
| Inner diameter(ID) | 146.8 mm (5.78 英寸) |
| Height | 457.2 mm (18.00 英寸) |
| Total Height | 469.9 mm (18.50 英寸) |
| Bottom hole diameter | 22.73 mm (0.89 英寸) |
| Filter efficiency | 99.9% |
| Filtration efficiency test standards | ISO 5011 |
| MOQ | 4 sets |
| Delivery time | 1-7 Days for stock items/ 10-25 days for production order |
| Packaging | JQHV Brand/Neutral/Color Box/Customized |
| Service | ODM & OEM |
| Replace Brand Name | OEM PART NO. |
| AC DELCO | A1561C |
| AIRMAN-HOKUETSU | 3214314400 |
| ALCOA MARINE | IA3361 |
| AMERICAN MOTORS CORPORATION | IA3361 |
| ASAHI | IA3361 |
| BEPCO GROUP LTD | 16129 |
| BERGERAT MONNOYEUR | E2321 |
| BIG A | 94722 |
| CASE/CASE IH | D8NN9618AA |
| CATERPILLAR | 3I1454 |
| CHAMPION ROAD | 28120 |
| CLARK | 2528680 |
| CLEVELAND | 28120 |
| COOPERS | AEM2024 |
| DRESSER | 1249057H1 |
| DYNAPAC | 499386 |
| FIAT | XN386735 |
| FMC | 380144 |
| FORD | 9576P181070 |
| FREIGHTLINER | DNP181070 |
| GALION | 1249057H1 |
| GPC | FC868 |
| GROVE | 9999406298 |
| GUARDIAN | G124044 |
| HAVAM | HD8970 |
| HINO | 178012480A |
| HITACHI | 4146999 |
| HOIST LIFTTRUCK MANUFACTURING | M10351 |
| INGERSOLL RAND | 58800137 |
| INTERNATIONAL | 124913H1 |
| ISUZU | 1142150840 |
| JOHN DEERE | AT81018 |
| JOHNSTON SWEEPER COMPANY | 380144 |
| KAWASAKI | 3098170360 |
| KOBELCO | JS02P000013 |
| KOMATSU | 4190211240 |
| KRALINATOR | LA1054 |
| LINK BELT | KSH0438 |
| LOESING | 21760 |
| MASSEY FERGUSON | 1056021M91 |
| MCCORMICK | S238646 |
| METSO | 499386 |
| MISFAT | 788900 |
| MITSUBISHI | ME033483 |
| NELSON | 70340L |
| NELSON WINSLOW | 124044 |
| NEW HOLLAND | 83913766 |
| NUTECH | S1850 |
| OLSSONS I ELLOS AB | FD3913766 |
| PACCAR | Y06012306 |
| PUROLATOR | 6947759 |
| REFILCO | AF6722 |
| SUMITOMO | KSH0438 |
| TIM | 995801 |
| VAPORMATIC | CPD7044 |
| 28120 | |
| WALGAHN-MOTORENTECHN | 811079 |
| WESFIL | A911 |
Filter media: filter element adopts many kinds of materials, such as glass fiber, wood pulp filterpaper , stainless steel sinter fiber web and stainless steel wire woven.
Nominal filtration rating: 0.01μ ~ 1000μ
Operating pressure:21bar-210bar (Hydraulic Liquid Filtration)
O-ring material: Vition, NBR
The critical fact for the proper operation of the engine is to keep the lubriing oil clean, or to ensure no corrosive impurity inside the lubriion oil.
Product description:Fuel Filter 600-181-1600
About US
Creation time Guangzhou JQHV Filter co., ltd was founded in 2011.
Main products
Air filter, diesel filter, engine oil filter, hydraulic filter, oil-water separator, filter cup, filter head, air conditioning filter, air filter assembly and other products.
Host matching ,JCB,LIEBHERR,XGMA,SANY,XCMG,YUCHAI,SUNWARD,LIUGONG,LONKING,JCM,SDLG,LISHIDE,KUBOTA,
YANMAR,IHISCE,,DOOSAN,DAEWOO,HYUNDAI,KOMATSU,HITACHI,KOBELCO,KATO,SUMITOMO,OSEZU.
Appliion area
Excavators, harvesters, loaders, air compressors, engineering vehicles, forklifts, engine sets, etc.
FAQ
1, Are you trading company or manufacturer?
We are factory.
2, What products does your company supply?
1) Engine air filter,Oil filter,Fuel filter, etc.
2) Truck filter, Fuel Water Seperatoretc.
3) Construction machinery filter, agricultural machinery filter, etc.
4) Other auto parts
3, How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4, Do you provide samples ? is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
5, What is the MOQ for each items
If the items we have stock ,there is no limitation for MOQ ,and normally MOQ as 100 pieces acceptable.
6, Do you support OEM made?
OEM is warmly welcomed, we can arrange your own color or label,print your OEM package.
7, How’s the after-sale service?
We’ll take photos for your check before loading container and confirm all of documents within 48 hours.
8, What is your terms of payment?
Payment <=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
